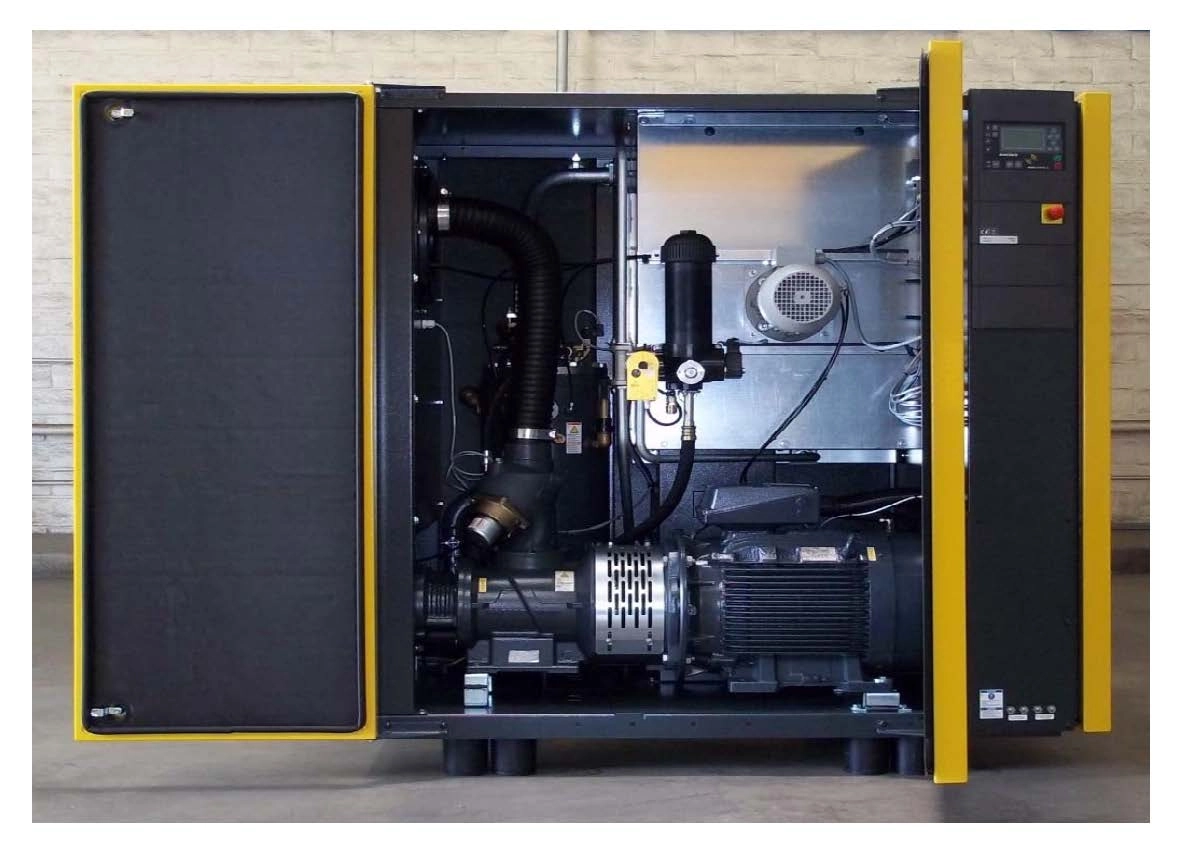

Quick Takeaway
Primary Insight: A compressed air system analysis measures the whole system, pressure, flow, energy use, and leaks, over days or weeks of real operating conditions, because most compressed air waste is invisible without that data.
Key Fact: Compressed air systems typically convert only around 10 percent of the electricity that goes into them into usable work at the point of use, according to the U.S. Department of Energy, and system improvements identified through an analysis can recover 20 to 50 percent or more of that lost electricity.
Best Suited For: Plant managers who suspect compressed air costs are too high but don't have the data to say where the waste is actually coming from.
Most plants treat compressed air like a utility that just works until it doesn't. The compressor runs, the gauges read normal, and nobody questions the electric bill until it's too large to ignore. A compressed air system analysis exists for exactly that gap. It replaces guesswork about where energy and money are going with measured data from the system as it actually operates, not as it's assumed to operate on a spec sheet.
That distinction matters because compressed air is an unusually expensive way to do work. Every stage between the compressor's electric motor and the tool or process actually using the air loses energy to heat, friction, and pressure drop, and by the time air reaches its point of use, only a fraction of the original electrical input is left doing productive work. A system analysis is how a plant finds out exactly how much of that fraction it's actually getting, and where the rest is going.
What a Compressed Air System Analysis Actually Measures
A compressed air system analysis measures four things: pressure, flow, energy consumption, and leaks, and it measures all four over a real operating period instead of a single walkthrough.
Pressure gets profiled at multiple points, typically at the compressor discharge, after the separator, after the dryer and filtration train, and out at the distribution system, so a technician can see exactly where pressure is being lost and by how much. Flow and demand get logged with data-logging equipment left in place for days or, on more complex systems, weeks, which is what makes it possible to see true peak loads, shift-to-shift demand swings, and pressure drops that a single-visit inspection would simply miss. Energy consumption gets measured directly at each compressor, giving a real cost-per-CFM figure for every unit in the system instead of a manufacturer's rated efficiency number. Leaks get quantified separately, most commonly with an ultrasonic acoustic detector that can find leaks by sound even in a noisy plant environment, or by measuring how much air the system uses during a no-demand period like a shift change or a weekend.
Together, that data gives a plant a real, measured picture of system performance instead of a snapshot based on one good or bad day.
Why Most Compressed Air Systems Waste More Energy Than They Use
Compressed air has a reputation among energy engineers as the most expensive utility in a typical plant, and the reason shows up in a single number: wire-to-work efficiency.
According to the Department of Energy's compressed air systems sourcebook, a typical compressed air system has a wire-to-work efficiency of around 10 percent, meaning roughly 90 percent of the electrical energy fed into an air compressor never reaches the point of use as productive work. Some of that loss is unavoidable thermodynamics (compression generates heat, and that heat has to go somewhere), but a meaningful share of it is recoverable waste: oversized equipment running inefficiently at partial load, pressure set too high across the whole system to compensate for a few high-demand points, poor piping layout adding unnecessary pressure drop, and leaks bleeding air the plant already paid to compress.
That's why the Department of Energy states that energy savings from compressed air system improvements can range from 20 to 50 percent or more of electricity consumption, once a plant actually identifies where its specific losses are happening. A compressed air system analysis is the tool that turns "somewhere in the 20 to 50 percent range" into a specific, actionable list for one plant's actual equipment and operating pattern.
How Much Compressed Air Leaks Are Actually Costing You
Leaks are usually the single largest, and most fixable, source of waste a compressed air system analysis turns up. The Department of Energy estimates that leaks often waste as much as 20 to 30 percent of a compressor's total output in a system that hasn't been actively managed for leaks. A well-run leak management program can bring that down substantially: the DOE sets a reasonable target of 5 to 10 percent of total system flow lost to leaks for a system with an ongoing detection and repair program, which shows how much of that waste is genuinely fixable rather than an unavoidable cost of running compressed air equipment.
Leaks concentrate at predictable points: pipe couplings and joints, hoses and tubing, fittings, quick-disconnects, filter-regulator-lubricator (FRL) units, condensate traps, and valve packings. None of those individually seem significant, which is exactly why they go unnoticed for years, but they compound. The DOE documents one real example: a chemical plant that used ultrasonic leak detection to find and repair 160 leaks realized $57,069 in annual energy savings from that single leak-reduction effort, which is a useful illustration of how much money accumulates in small leaks nobody was looking for.
What a Good Compressed Air System Analysis Report Should Give You
A compressed air system analysis is only as useful as what it hands the plant manager afterward. A report worth acting on typically includes:
-
A system performance summary covering measured pressure, flow, and demand patterns across the logging period, not just a single reading.
-
An energy cost analysis with projected savings, expressed in real dollars and cost-per-CFM, tied to the specific compressors and load patterns measured.
-
A leak survey listing each leak found, its location, and its estimated cost, so repairs can be prioritized by dollar impact instead of guesswork.
-
Equipment right-sizing recommendations, since oversized or undersized compressors relative to actual (not assumed) demand are a common finding.
-
Piping and layout improvement suggestions where pressure drop across the distribution system is costing more than it should.
-
A capital versus operational cost comparison, so a plant can weigh a capital equipment change against a lower-cost operational fix like leak repair or pressure trim.
A report that stops at "your system uses X kWh" without connecting that number to specific, fixable causes isn't a complete analysis. The value is in the causal chain from measured data to a prioritized action list.
Frequently Asked Questions
What is a compressed air system analysis?
A compressed air system analysis is a data-driven evaluation of an entire compressed air system, covering pressure, flow, energy consumption, and leaks, rather than an inspection of the compressor alone, and it typically combines multi-day data logging with a leak survey and a written findings report.
How much energy can a compressed air system analysis help save?
Energy savings from compressed air system improvements can range from 20 to 50 percent or more of electricity consumption, according to the U.S. Department of Energy, though actual savings for a given plant depend on what the measured baseline data reveals about that specific system.
How much do compressed air leaks cost a facility?
Compressed air leaks often waste as much as 20 to 30 percent of a compressor's total output in an unmanaged system, according to the Department of Energy, and a reasonable target for a well-maintained system with an active leak-repair program is 5 to 10 percent of total system flow.
What is the difference between a compressed air audit and a leak survey?
A compressed air audit, or system analysis, evaluates the entire system, including pressure profiles, energy consumption, and equipment sizing, while a leak survey is a narrower process that only locates and quantifies leaks, usually as one component within the broader audit.
How long does a compressed air system analysis take?
A compressed air system analysis typically requires data logging over several days to a few weeks to capture true demand patterns, peak loads, and pressure drops across different production shifts, rather than a single point-in-time inspection.
Finding Out What Your System Is Actually Losing
A compressed air system analysis turns a plant's biggest unmeasured utility cost into a specific, prioritized list of fixes, backed by real logged data instead of assumptions. Given that a typical system only delivers about 10 percent of its electrical input as usable work, and that leaks alone can account for 20 to 30 percent of a compressor's output in an unmanaged system, the question for most plants isn't whether there's room to improve. It's how much, and where.
