Automatic Magnetic Drain

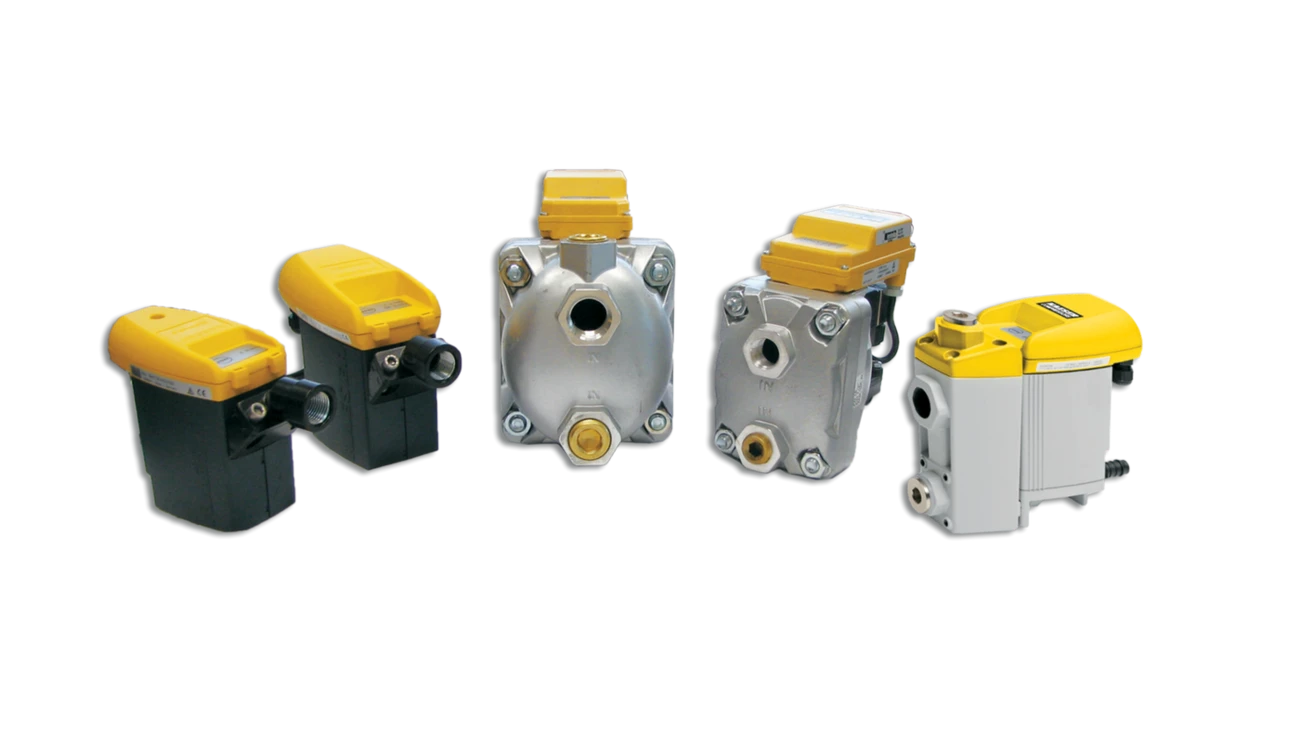

Condensate drains
Technical Specifications AMD 6550 Aftercoolers, liquid separators, receiver tanks, drip legs, low- Applications point piping, and coalescing filters Capacity (gal/hr) 125 Working pressure range 60* - 225 psig Max. ) 14 CONSTRUCTION Housing High tens…
Service & Support for Condensate drains
American Compressor Company sells, services, repairs, and supports Condensate across Los Angeles County and Southern California.
Technical Specifications AMD 6550 Aftercoolers, liquid separators, receiver tanks, drip legs, low- Applications point piping, and coalescing filters Capacity (gal/hr) 125 Working pressure range 60* - 225 psig Max. ) 14 CONSTRUCTION Housing High tensile corrosion resistant aluminum Internals Stainless steel Tubing Copper External fittings Stainless steel and brass Discharge valve Brass Seals Viton®, Nitrile and Teflon® * For operating pressures less than 60 psig, a source of pilot air of 60 to 225 psig must be supplied for cylinder operation. Viton and Teflon are registered trademarks of DuPont Corporation.
Specifications are subject to change without notice. Kaeser Compressors, Inc. Kaeser Compressors Canada Inc.
Kaeser Compresores de México Kaeser Compresores de 511 Sigma Drive 3760 La Verendrye Street S de RL de CV Guatemala y Cia. Ltda. Fredericksburg, VA 22408 USA Boisbriand, QC J7H 1R5 CANADA Calle 2 #123 3a calle 6-51, zona 13 Telephone: 540-898-5500 Telephone: (450) 971-1414 Parque Industrial Juríca Colonia Pamplona Toll Free: 800-777-7873 Toll free: (800) 477-1416 76100 Querétaro, Qro.
com © 2025 Kaeser Compressors, Inc. All rights reserved. 04/25 USAMD
Documentation
Datasheets and product literature for Condensate drains.
